Yanmar Develops Technology for Auto-navigation and Auto-docking System

Yanmar Develops Basic Technology with JAMSTEC for Auto-navigation Robotic Boat and Auto-docking System

Yanmar robot_boat - yacht and sea

Yanmar has undertaken development of underlying technologies for robotic boats and auto-docking, technologies that are expected to see service in operations in dangerous waters, maritime surveys, or smart fisheries.

While development of autonomous vehicles for the road and the farm continues apace, maritime robotics technologies have yet to become established. With long established track record of R&D in various fields of robotics and IT, Yanmar has been working to meld the hardware side of its boatbuilding and recreational marine domains with basic development of underlying IT and robotics technologies, towards robotic boat technologies that can be used in the marine surveys and infrastructure inspection.

The Robotic Boat demonstration vehicle developed by Yanmar for auto-docking utilizes Yanmar’s expertise in Fiber Reinforced Plastic (FRP) to realize a compact, low cost manufacturing processes. In addition, by implementing a platform that utilizes middleware, a system was created that can address various needs. The demonstration boat was developed under the Strategic Innovation Program for next generation technology for oceanic resources exploration and will be operated as an Autonomous Surface Vehicle by the Japan Agency for Marine Earth Science and Technology for continuous marine resources monitoring. Future activities will involve further marine testing with universities and research institutes, and expansion of the program to commercial use by industry.

In addition, the autonomous piloting technology involved in the robotic boat was developed into an auto-docking system that can be integrated into fishing vessels or marine pleasure craft. This technology is not destined just for commercial vessels, but may be integrated into Yanmar vessels to reduce the hassle of docking and make boating a more enjoyable experience.

Dimensions4.4m × 1.9m × 1.8m
Weight1.8 tons
Max. speed5 knots
Navigation speed3 knots
Operational durationmore than 48 hours
PowerplantDiesel generator / 2nd generation batteries
InstrumentationDifferential GPS (DGPS), Inertial Measurement Unit (IMU), Acoustic Doppler Current Profiler (ADCP), Super Short BaseLine navigation (SSBL)
Communications
Technology
Wireless LAN (Wifi), L band and Ka band satellite communications, Iridium satellite communications, public wireless broadband
Monitoring equipment1 IR camera, 3 x 120°angle HD camera, Radar, 1 x AIS

Robotic Boat

Yanmar robot_boat-02 - yacht and sea

■ Main features

(1) Unification of boatbuilding and platform with middleware

Utilizing a middleware platform means that various modules can be integrated into the platform customizing the technology to meet the needs of the various business and research users. By implementing a common platform for Yanmar’s robotics technology on the land, at seam and in the city, product development times can be reduced.

Furthermore, by utilizing Yanmar’s expertise in FRP design, Yanmar has built a stable vessel that can right itself after being overturned in rough seas.

(2) Example of implementation

Under the Strategic Innovation Program (SIP), the Japan Agency for Marine Earth Science and Technology, will operate the robotic boat as an autonomous surface vehicle for continuous monitoring of the Future Autonomous Underwater Vehicle system.

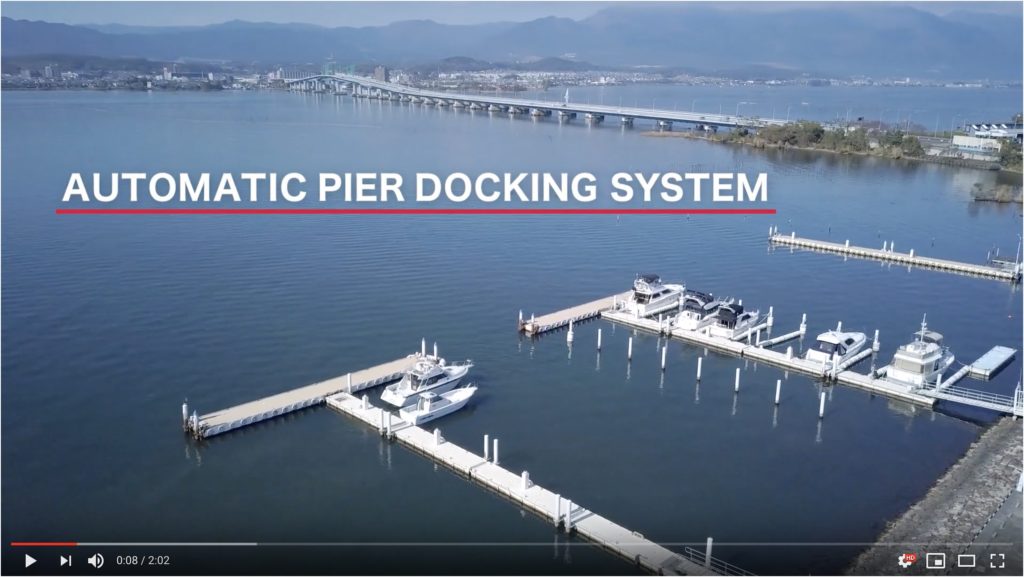

yanmar auto-docking system - video

Auto-docking technology is part of the autonomous navigation system. The system utilizes RTK- GNSS※2 which takes satellite positioning technology together with corrective data from Yanmar’s proprietary digital repeater system to provide highly precise positioning data to accurately direct the boat into the designated dock or location. This eliminates the need for the boats operator to be engaged in the difficult and troublesome operation of docking the boat, making recreational marine an even more enjoyable retreat. The technology is to be applied not just to commercial vessels, but also to Yanmar’s recreational marine and fishing vessels in Japan, with deployment commencing after 2020. Research into core robotic boat technology is ongoing.

For more details, please visit the official website of Yanmar Co., Ltd.,: https://www.yanmar.com/global/about/
