How To Replace A Winch Strap

How to replace a winch strap

Level: Beginner                 Time: 20 minutes

Over time, through contact with the sun, salt water or because it is subjected to a lot of tension, the strap of your winch eventually deteriorates. However, there’s no need to change the entire winch. Replacing a strap is an easy and inexpensive operation.

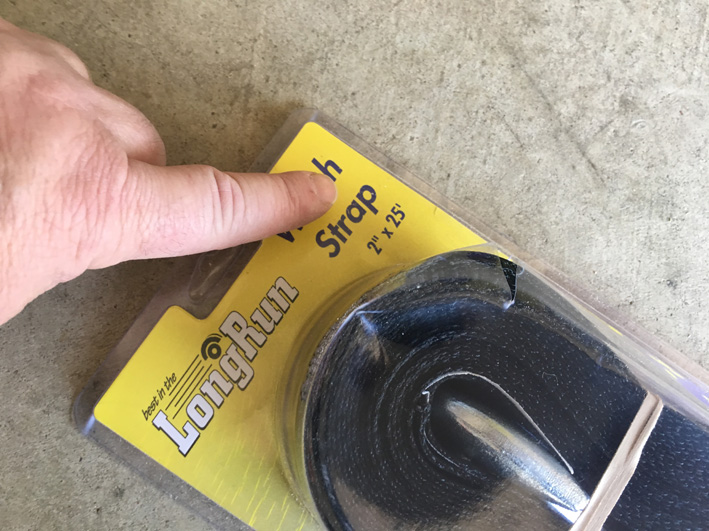

1 – Buy the right strap

It may not have been obvious to you, but not all straps are the same. There are several widths (usually 2’’ and 3’’), lengths (depending on the length of the trailer) and especially load capacities. Be sure to choose a model that offers a maximum breaking load at least 20% greater than the weight of your boat, it is insurance for your safety.

Replace A Winch Strap - model



Regarding the length, do not take one that’s too short, obviously, but also not too long, because the strap will not fit in the groove provided for this purpose.

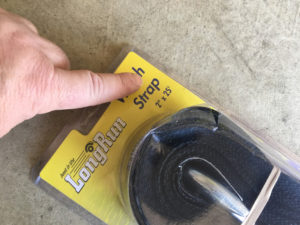

Replace A Winch Strap - buy

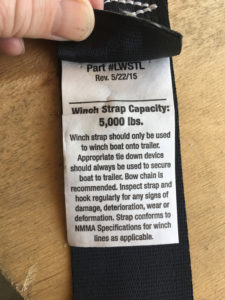

Finally, there is normally a place on your winch where your workload capacity is indicated. If necessary, you can refer to the manufacturer’s instructions. Finally, do not replace a cable with a strap, the winch is not designed for this change.

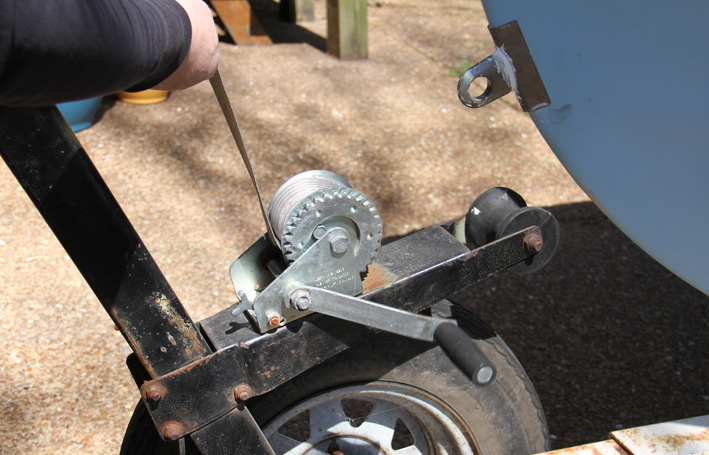

2 – Remove the old strap

Replace A Winch Strap - remove strap



Just unroll the old strap all the way, being careful not to get your fingers caught.





3 – Loosen the central bolt

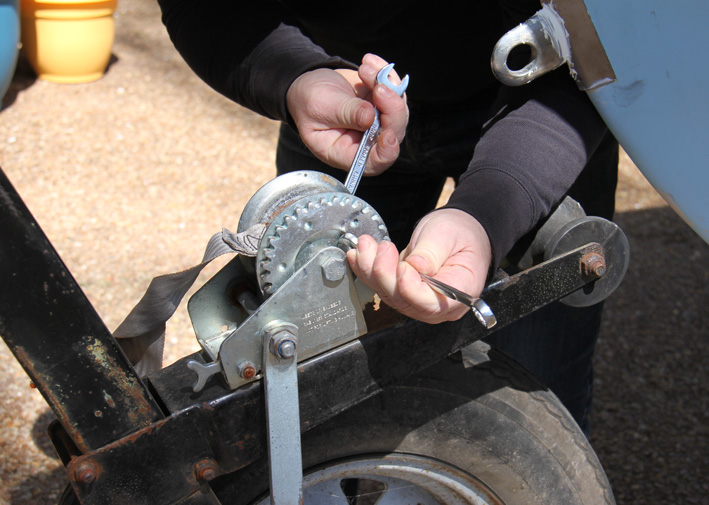

Replace A Winch Strap - unscrew


The strap is held in place by a central bolt. It may be the bolt acting axis or another slightly offset. Loosen the nuts of the bolt with two keys. It is possible that the nuts will resist a little because of the corrosion. In this case, use a product like WD 40.




4 – Remove the central bolt and inspect it

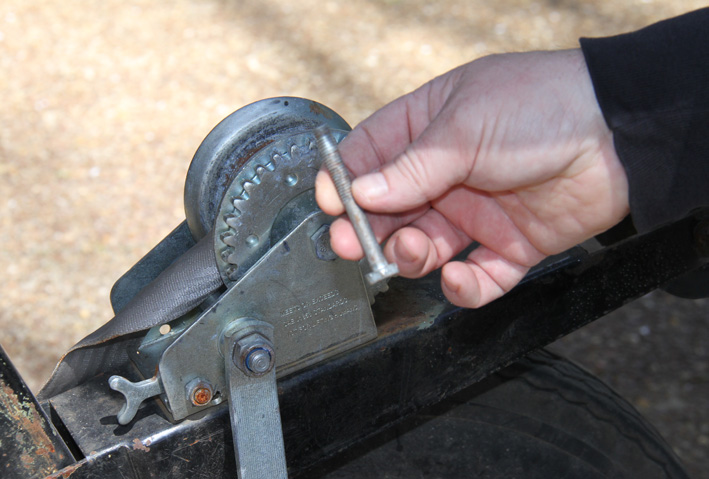

Replace A Winch Strap - bolt


Once the bolt is unscrewed, remove it from the winch and remove the strap. If the strap is too old, you may need to cut it with a box cutter at the shaft to remove it. Inspect its shape. It must not be twisted or attacked by corrosion. If it looks bad, it’s better to change it.




5 – Do some cleaning

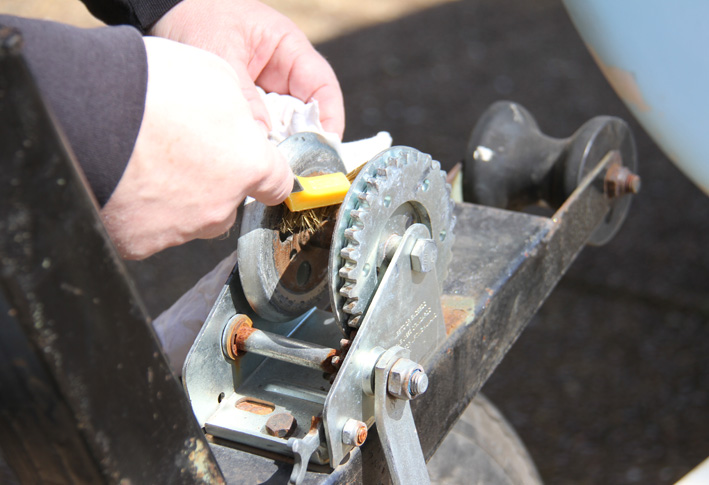

Replace A Winch Strap - cleaning


Once the bolt is removed, clean the winch cage and make sure there is no corrosion. If the galvanized coating is a little damaged, you can spray some cold galvanizing. Perform the same operation for the center bolt.

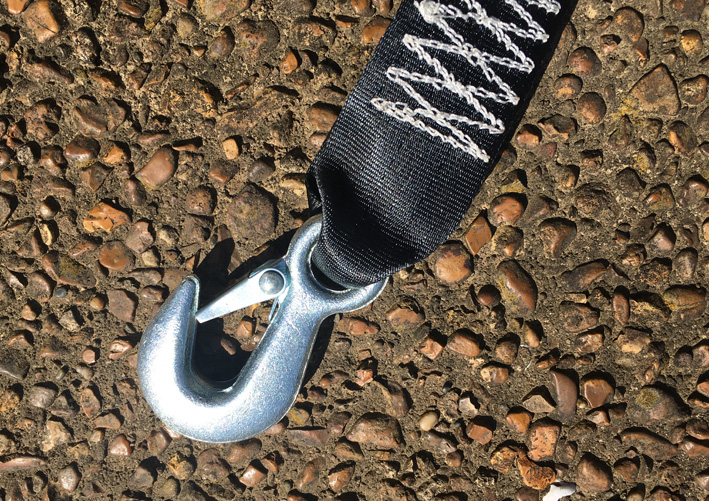

6 – Install the hook

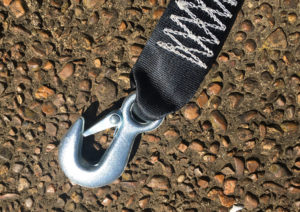

Replace A Winch Strap - hook


Most straps are sold with a new hook. If this is not the case, do not forget to insert the hook into the loop of the strap. Be sure to follow common sense by keeping the strap flat.

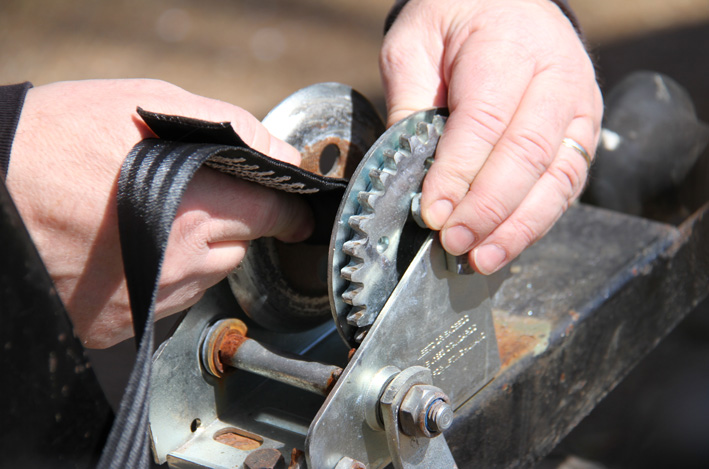

7 – Install the new strap

Replace A Winch Strap - new strap


Insert the bolt into the winch cage and at the same time slide the bolt into the loop sewn at the end of the strap. Tighten the nuts of the central bolt without tightening too hard, because the the axis needs to remain mobile.

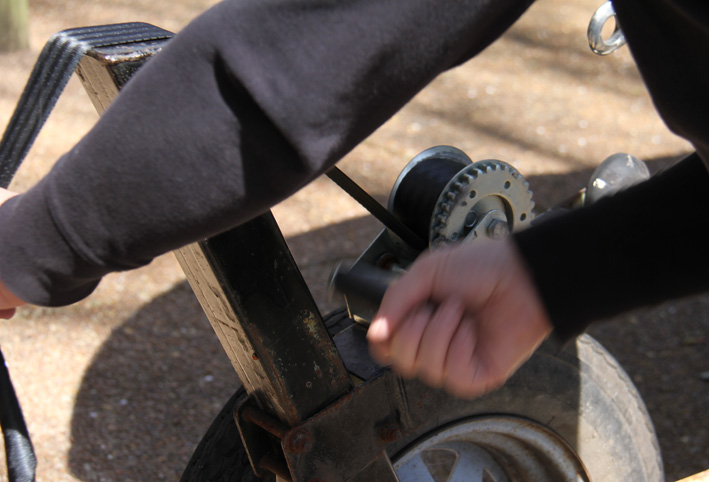

8 – Wind the new strap

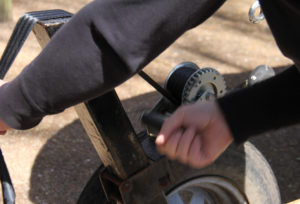

Replace A Winch Strap - wind the strap


Wrap the new strap onto the winch drum using the crank. Make sure the strap winds neatly, staying flat and without wrinkling.

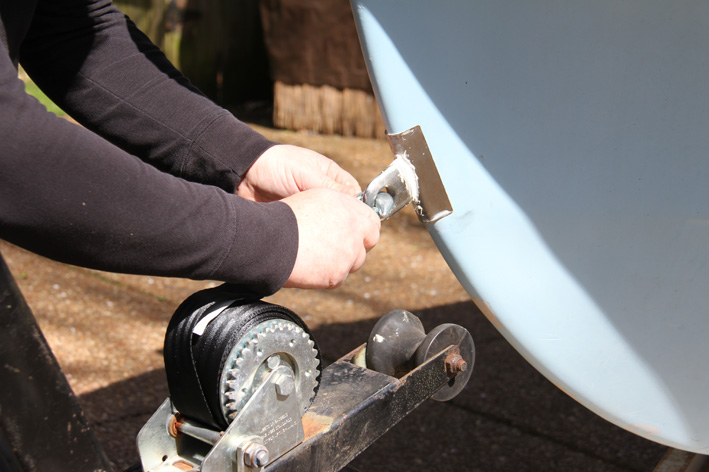

9 – Hang the strap on the boat

Replace A Winch Strap - hook the strap


Before you finish winding the strap, do not forget to hang the hook onto the boat’s ring. Wind it until it is tight and make sure that the winch locking pawl is working properly.





10 – Finish by lightly greasing the winch

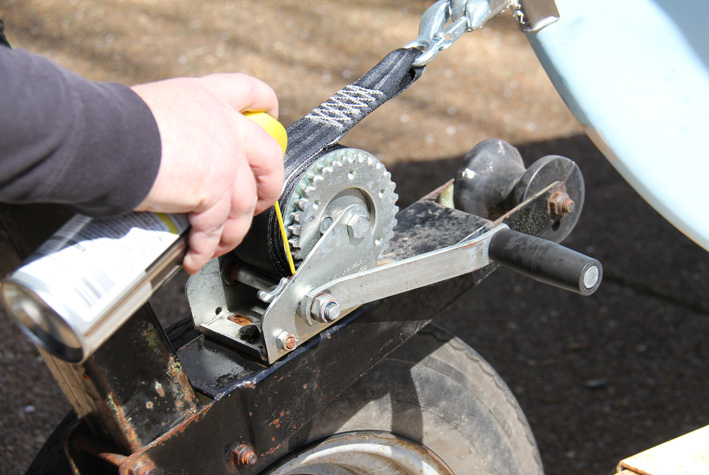

Replace A Winch Strap - lubricant


While you’re there, spray a little lubricant on the mechanical part of the winch, it will be easier to handle.

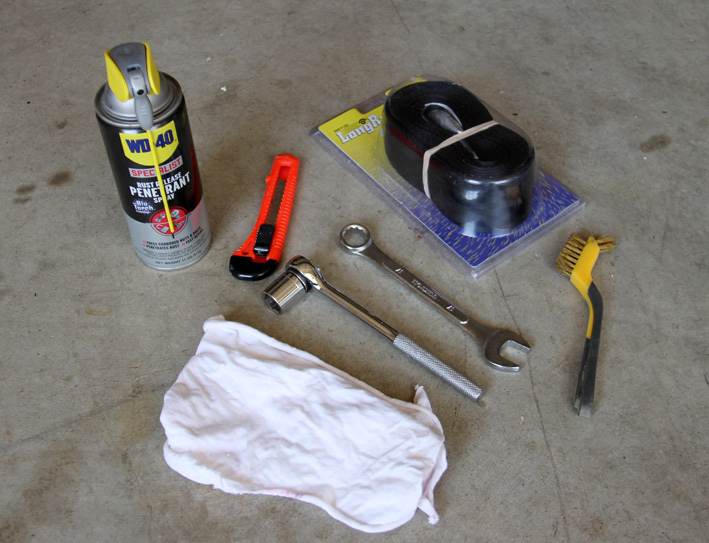

What do you need

  • A new strap
  • Wrenchs and sockets at the right dimension
  • A box cutter
  •  A wire brush
  • A rag
  •  A can of WD40 or other lubricant

Replace A Winch Strap - equipement
